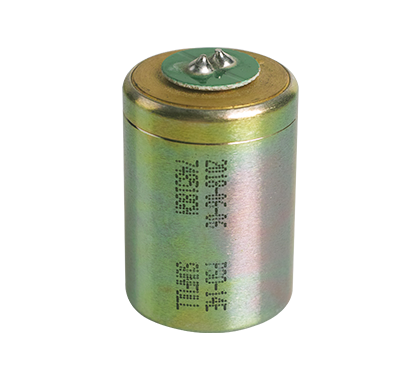

PSO-14E-3500 is a kind of geophone which can work at omni-directional.
| PSO-14E-3500 Geophone Horizontal specifications | |
|---|---|
| Parameter/mode | PSO-14E-3500 (20℃) |
| Natural Frequency (Hz) | 14 ± 7% |
| Coil Resistance (Ω) | 3500 ± 5% |
| Sensitivity (V/m/s) | 80 - 10% / +5% |
| Damping | 0.185 - 5% / +10% |
| Distortion (%) | |
| Spurious Frequency (Hz) | |
| Max. Motion (mm) | 4 |
| Moving Mass (g) | 10.3 |
| Dimensions (d×h) mm | 25.4 x 36 |
| Temperature Range (℃) | -40° to 70°C |
| Warranty Period (Year) | 2 |
| Weight (g) | 90 |
